Cheaper 790Cfm 205Psi CUMMINS Movable Diesel Rotary Screw compressor for drilling rig road construction
The most efficient wheeled Diesel compressor, Deutz, Ctapillar, Cummins diesel engine, less10-15% diesel consumption than the traditional model. More flexible in various working conditions for mining, road construction. Sand blasting.
Advantages of Diesel Portable Screw Compressor:
1. Two-stage screw block is patented;
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;
Application of Diesel Portable Screw Compressor:
Shanghai rotorcomp diesel Portable/Mobile screw air compressor is widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other industries.
CUMMINS Portable Compressor Features:
Diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.
Shanghai Rotorcomp diesel portable screw air compressor is efficient and reliable, with complete varieties. Discharge quantity covers 33m3/min and the discharge pressure is up to 3.5MPa at maximum.
Single-stage compression portable diesel screw air compressor
Characteristics
1. Main engine: Patent lines large-diameter rotor design is adopted. The main engine is directly connected with the diesel engine through the high-elastic coupling, without overdrive gear. The revolving speed of main engine is consistent with that of diesel engine, so that higher efficiency, more reliability and longer service lift can be achieved.
2. Select domestic and international famous brand diesel engine, such as, Commins and Yuchai, with strong power, low fuel consumption, perfect after-sales service system so that the user can obtain quick and perfect service.
3. Air flow control system is simple and reliable. It conducts 0 - 100% of automatic adjustment for the air inflow according to air consumption volume, and automatically adjusts the accelerator of the diesel engine to save the diesel at the maximum degree at the same time.
4. The operation parameters, such as, discharge pressure, discharge temperature of microcomputer intelligent monitoring air compressor and rotate speed, oil pressure, water temperature of the diesel engine as well as liquid level of oil tank, have automatic alarm and stop protection function.
5. Multi-stage air filter is suitable for working environment with much dust;Multi-stage fuel filter is suitable for current situation of domestic oil quality;Super-large oil and water cooler is suitable for high-temperature and altitude environment.
6. The parts of spacious maintenance door required to be maintained are within accessible range. It is easy and convenient to maintain air filter, oil filter, fuel tank, battery and oil cooler, reducing the shutdown time.
7. It is convenient to move and it can be moveable flexibly under abominable topographic condition.Each compressor is equipped with rings, which are used for safely and conveniently lifting and transporting.
| Model | Capacity
(m3/min) | Working Pressure
(Mpa) | Diesel Engine
(kw) | Dimension
(mm) |
| LY22/14 | 22 | 1.4 | CUMMINS 6 CTA8.9-C325 | 4580×1950×2600 |
Screw air compressor main spare parts configuration:
| Item | Parts | Brand |
| 1 | Air end | rotorcomp |
| 2 | Intake Valve | rotorcomp |
| 3 | Solenoid Valve | DANFOSS |
| 4 | Temperature sensor | rotorcomp |
| 5 | Pressure sensor | Huba original (from Switzerland) |
| 6 | Engine | Cummins |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Hongxing |
| 9 | PLC | PLOT |
| 10 | Minimal Pressure Valve | rotorcomp |
| 11 | Air filter element | rotorcomp |
| 12 | Oil filter element | rotorcomp |
| 13 | Oil and gas separator element | rotorcomp |
| 14 | Bearing | Sweden SKF (Life 60000 hours) |
Product Tags:
|
|

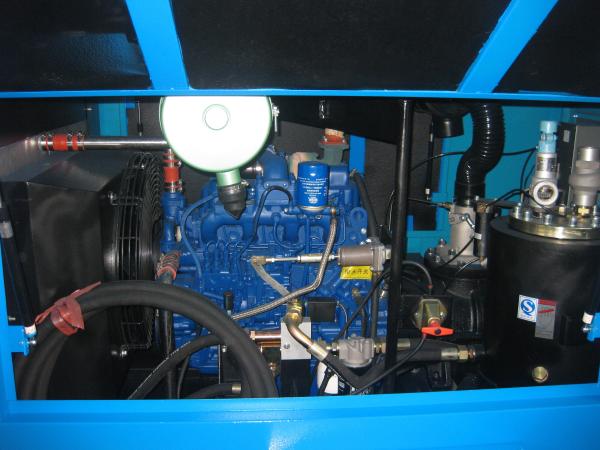

Movable Portable Air Compressor Diesel Engine / Towable Diesel Compressor Images
|
